Revit fill patterns - Wood collection

Revit fill patterns - Wood is a collection of 30 wood drafting and model patterns that you can use in your Revit projects.

Content: The Wood hatch collection includes two Revit projects (RVT files) - imperial and metric, with fill patterns and corresponding filled regions. Also it includes the editable hatch lines.

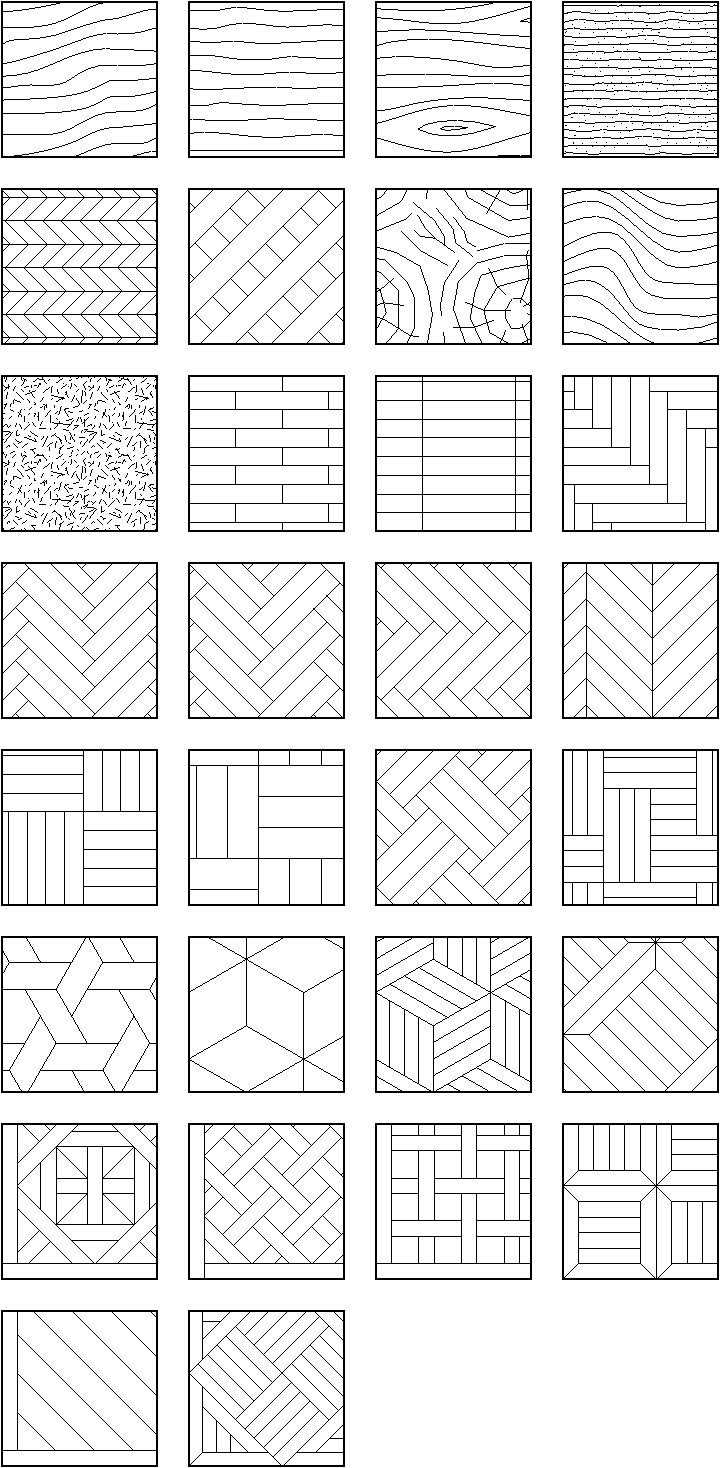

The fill patterns included:

Imperial

• Wood - Hardwood
• Wood - Finewood
• Wood - Finish face
• Wood - Hardboard
• Wood - Plywood
• Wood - Lattice
• Wood - Logend
• Wood - Wavy grain
• Wood - OSB
• Wood - Parquet 2x12" - Brick
• Wood - Parquet 2x12" - Stack
• Wood - Parquet - Herringbone 2x12" - Straight
• Wood - Parquet - Herringbone 2x12" - Vertical
• Wood - Parquet - Double Herringbone 2x12" - Vertical
• Wood - Parquet - Herringbone 2x12" - Diagonal
• Wood - Parquet - Chevron 45 Degree 2x12"
• Wood - Parquet - Checkerboard 2x12"
• Wood - Parquet - Checkerboard 4x12"
• Wood - Parquet - Basket Weave 3x12"
• Wood - Parquet - Hadon Hall 2x12"
• Wood - Parquet - Hexagon Weave 4x8"
• Wood - Parquet - Hexagon 14 1/2"
• Wood - Parquet - Rhombs 14 1/2"
• Wood - Parquet - Saxony 2.4x12"
• Wood - Parquet Panel - Bordeaux 24x24"
• Wood - Parquet Panel - Versailles 24x24"
• Wood - Parquet Panel - Chantilly 24x24"
• Wood - Parquet Panel - Monticello 24x24"
• Wood - Parquet Panel - Louvre 24x24"
• Wood - Parquet Panel - Chaucer 24x24"

Metric

• Wood - Hardwood
• Wood - Finewood
• Wood - Finish face
• Wood - Hardboard
• Wood - Plywood
• Wood - Lattice
• Wood - Logend
• Wood - Wavy grain
• Wood - OSB
• Wood - Parquet 300x60mm - Brick
• Wood - Parquet 300x60mm - Stack
• Wood - Parquet - Herringbone 300x60mm - Straight
• Wood - Parquet - Herringbone 300x60mm - Vertical
• Wood - Parquet - Double Herringbone 300x60mm - Vertical
• Wood - Parquet - Herringbone 300x60mm - Diagonal
• Wood - Parquet - Chevron 45 Degree 300x60mm
• Wood - Parquet - Checkerboard 300x60mm
• Wood - Parquet - Checkerboard 300x100mm
• Wood - Parquet - Basket Weave 300x60mm
• Wood - Parquet - Hadon Hall 300x50mm
• Wood - Parquet - Hexagon Weave 200x100mm
• Wood - Parquet - Hexagon 370mm
• Wood - Parquet - Rhombs 370mm
• Wood - Parquet - Saxony 300x60mm
• Wood - Parquet Panel - Bordeaux 600x600mm
• Wood - Parquet Panel - Versailles 600x600mm
• Wood - Parquet Panel - Chantilly 600x600mm
• Wood - Parquet Panel - Monticello 600x600mm
• Wood - Parquet Panel - Louvre 600x600mm
• Wood - Parquet Panel - Chaucer 600x600mm
