Revit fill patterns – Pavers&Tiles collection

Revit fill patterns – Pavers&Tiles is a collection of 50 pavers and tiles model patterns that you can use in your Revit projects.

Content: The Pavers&Tiles hatch collection includes two Revit projects (RVT files) - imperial and metric, with fill patterns and corresponding filled regions. Also it includes the editable hatch lines.

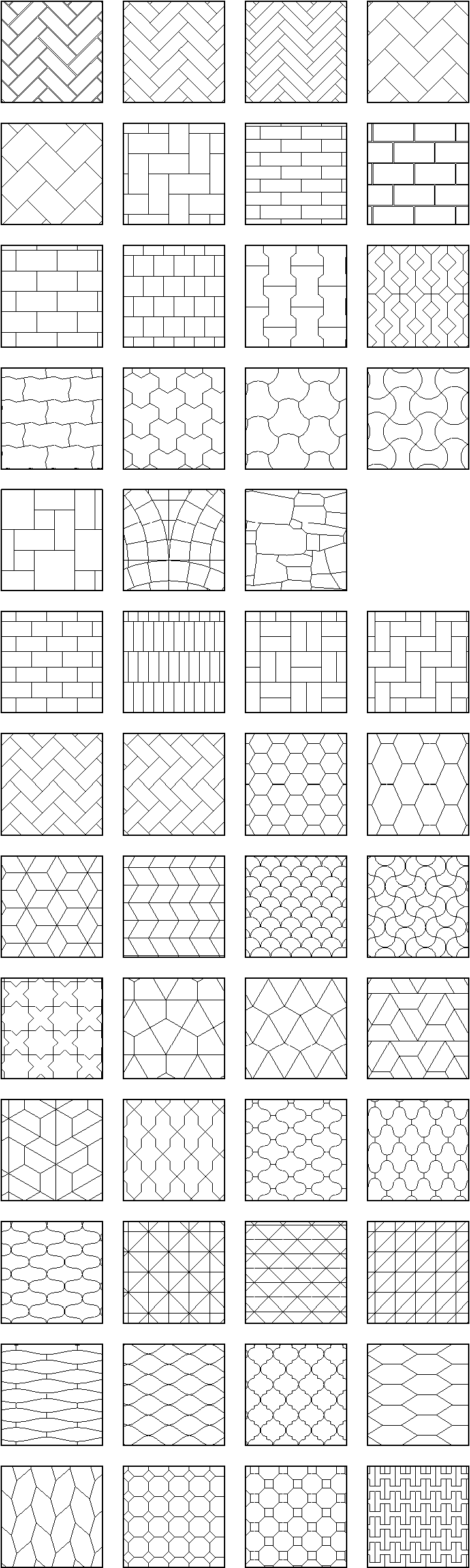

The fill patterns included:

Imperial

Pavers

• Paver - 7 5/8x3 5/8" - Herringbone - with joints
• Paver - 8x4" - Herringbone
• Paver - 8x2" - Herringbone
• Paver - 8x5 1/4" - Herringbone
• Paver - 8x4" - Herringbone 90
• Paver - 8x4" - Off-set - with joints
• Paver - 8x4" - Off-set
• Paver - 8x4" - Weave
• Paver - Cobbles 4x4"
• Paver - Dumble 8x6 3/8"
• Paver - Grass
• Paver - Zigzag 225x112.5mm
• Paver - Trihex
• Paver - Milano
• Paver - Basil
• Paver - Mixed
• Paver - Cobbles - Fish scale
• Paver - Flagstone

Tiles

• Tile - Subway 3x6" - Offset
• Tile - Offset 2x6" - Vertical
• Tile - Weave 3x6"
• Tile - Herringbone 3x6" - Straight
• Tile - Herringbone 3x6" - Vertical
• Tile - Herringbone 3x6" - Diagonal
• Tile - Hexagon 4x4 5/8"
• Tile - Hexagon 6x8" - Elongated
• Tile - Diamond 4" - Escher
• Tile - Diamond 4" - Chevron
• Tile - Ogee Drop 4" - Straight Set
• Tile - Ogee Drop 4" - Moroccan
• Tile - Star&Cross 4 3/4x4 3/4"
• Tile - Hexite 6x7"
• Tile - Hexite 6x7" - opt. 2
• Tile - Trapezoid 7"
• Tile - Trapezoid 7" - opt. 2
• Tile - Arabesque 5 1/2x8 3/4"
• Tile - Paseo 6x4 3/4"
• Tile - Paseo 6x4 3/4" - Vertical
• Tile - Paseo 7x4 3/4" - Option 2
• Tile - Triangle 4"
• Tile - Triangle 4"  - On Point
• Tile - Triangle 4"  - Straight Set
• Tile - Wave 12"
• Tile - Wave 4x8"
• Tile - Ogee 5x6" - Straight Set
• Tile - Picket 4x10"  - Straight Set
• Tile - Picket 4x10" - Braid
• Tile - Octagon&Diamond 4"
• Tile - Octagon&Diamond 4" - Option 2
• Tile - Chaine Homme 4"

Metric

Pavers

• Paver - 200x65mm - Herringbone - with joints
• Paver - 200x65mm - Herringbone
• Paver - 200x50mm - Herringbone
• Paver - 200x100mm - Herringbone
• Paver - 200x133mm - Herringbone
• Paver - 200x100mm - Herringbone 90
• Paver - 200x65mm - Off-set
• Paver - 200x100mm - Off-set - with joints
• Paver - 200x100mm - Off-set
• Paver - Cobbles 100x100mm
• Paver - Dumble 200x160mm
• Paver - Grass
• Paver - Zigzag 225x112.5mm
• Paver - Trihex
• Paver - Milano
• Paver - Basil
• Paver - Mixed
• Paver - Cobbles - Fish scale
• Paver - Flagstone

Tiles

• Tile - Offset 150x75mm
• Tile - Offset 150x50mm - Vertical
• Tile - Weave 150x75mm
• Tile - Herringbone 150x75mm - Straight
• Tile - Herringbone 150x75mm - Vertical
• Tile - Herringbone 150x75mm - Diagonal
• Tile - Hexagon 100mm
• Tile - Hexagon 200mm - Elongated
• Tile - Diamond 100mm - Escher
• Tile - Diamond 100mm - Chevron
• Tile - Ogee Drop 100mm - Straight Set
• Tile - Ogee Drop 100mm - Moroccan
• Tile - Star&Cross 120mm
• Tile - Hexite 180mm
• Tile - Hexite 180mm - opt. 2
• Tile - Trapezoid 180mm
• Tile - Trapezoid 180mm - opt. 2
• Tile - Arabesque 220mm
• Tile - Paseo 120mm
• Tile - Paseo 120mm - Vertical
• Tile - Paseo 120mm - Option 2
• Tile - Triangle 100mm
• Tile - Triangle 100mm  - On Point
• Tile - Triangle 100mm  - Straight Set
• Tile - Wave 300mm
• Tile - Wave 200mm
• Tile - Ogee 150mm - Straight Set
• Tile - Picket 250mm  - Straight Set
• Tile - Picket 250mm  - Braid
• Tile - Octagon&Diamond 100mm
• Tile - Octagon&Diamond 100mm - Option 2
• Tile - Chaine Homme 100mm
