Revit fill patterns - Bricks collection

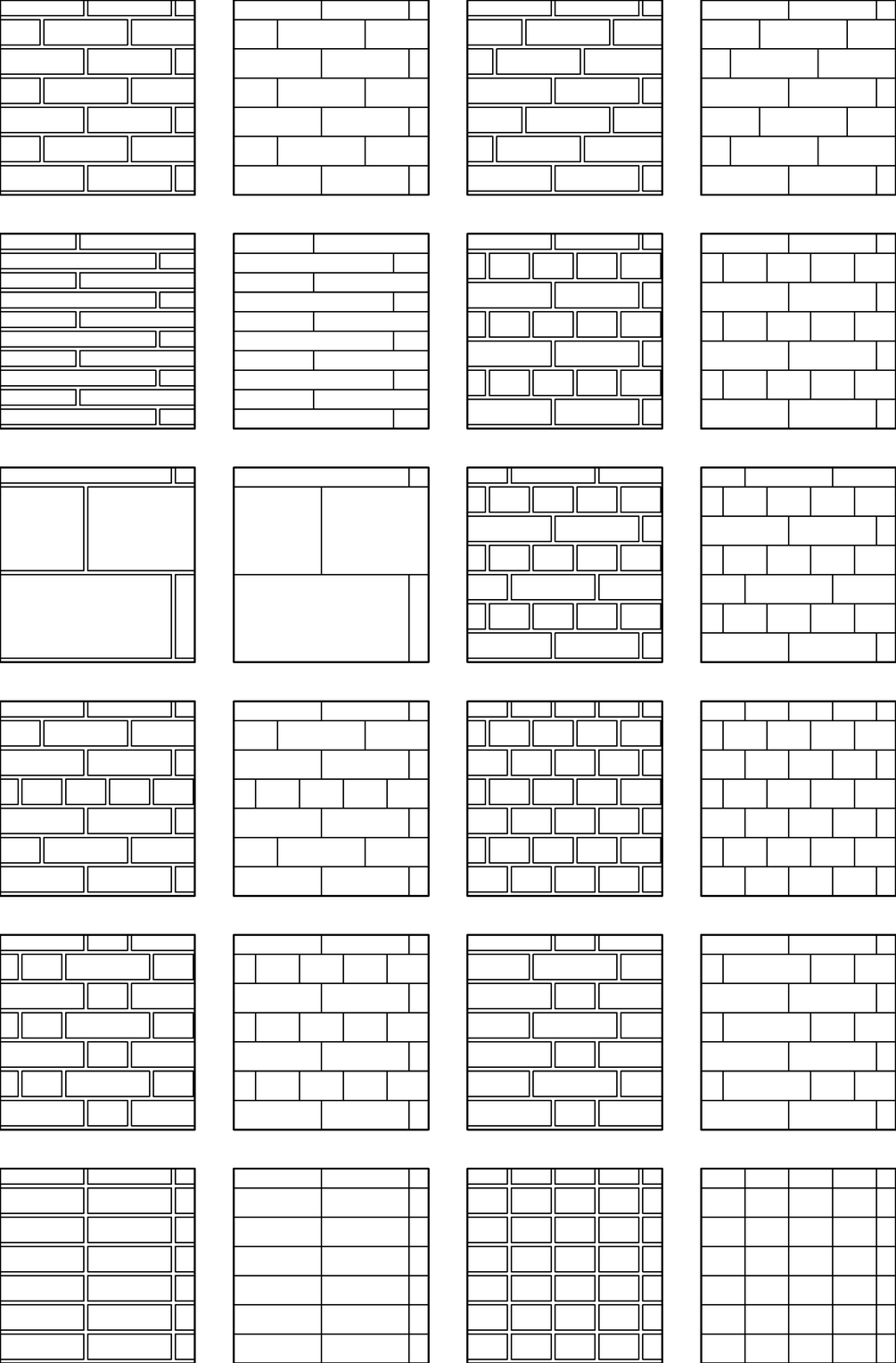

Revit fill patterns - Bricks is a collection of 91 bricks and blocks model patterns, grouped by brick sizes and bond types.

Content: The Bricks hatch collection includes two Revit projects (RVT files) - imperial and metric, with fill patterns and corresponding filled regions.

The fill patterns included:

Imperial

• Brick - Modular
• Brick - Modular - Nominal size
• Brick - Standard
• Brick - Standard - Nominal size
• Brick - Modular (1/3 Running bond)
• Brick - Modular (1/3 Running bond) - Nominal size
• Brick - Modular (Common/American bond)
• Brick - Modular (Common/American bond) - Nominal size
• Brick - Modular (English bond)
• Brick - Modular (English bond) - Nominal size
• Brick - Modular (English cross bond)
• Brick - Modular (English cross bond) - Nominal size
• Brick - Modular (Flemish bond)
• Brick - Modular (Flemish bond) - Nominal size
• Brick - Modular (Header bond)
• Brick - Modular (Header bond) - Nominal size
• Brick - Modular (Stack bond)
• Brick - Modular (Stack bond) - Nominal size
• Brick - Modular (Stack bond - Stretcher)
• Brick - Modular (Stack bond - Stretcher) - Nominal size
• Brick - Modular (Sussex bond - Header)
• Brick - Modular (Sussex bond - Header) - Nominal size
• Brick - Engineer (Oversized), Queen
• Brick - Engineer (Oversized), Queen - Nominal size
• Brick - Norman
• Brick - Norman - Nominal size
• Brick - Utility
• Brick - Utility - Nominal size
• Brick - Double Utility
• Brick - Double Utility - Nominal size
• Brick - Premier Plus, Premier Executive
• Brick - Premier Plus, Premier Executive - Nominal size
• Brick - Closure (Economy)
• Brick - Closure (Economy) - Nominal size
• Brick - Roman
• Brick - Roman - Nominal size
• Brick - Norwegian (Jumbo Norman)
• Brick - Norwegian (Jumbo Norman) - Nominal size
• Brick - King
• Brick - King - Nominal size
• Brick - Monarch, Titan
• Brick - Monarch, Titan - Nominal size
• Brick - Double Monarch, Double Titan
• Brick - Double Monarch, Double Titan - Nominal size
• Block - Concrete CMU
• Block - Concrete CMU - Nominal size

Metric

• Brick - Standard 215x102.5x65
• Brick - Standard 215x102.5x65 - Nominal size
• Brick - Standard (1/3 Running bond)
• Brick - Standard (1/3 Running bond) - Nominal size
• Brick - Standard (English bond)
• Brick - Standard (English bond) - Nominal size
• Brick - Standard (English cross bond)
• Brick - Standard (English cross bond) - Nominal size
• Brick - Standard (English garden wall bond)
• Brick - Standard (English garden wall bond) - Nominal size
• Brick - Standard (Header bond)
• Brick - Standard (Header bond) - Nominal size
• Brick - Standard (Flemish bond)
• Brick - Standard (Flemish bond) - Nominal size
• Brick - Standard (Sussex bond)
• Brick - Standard (Sussex bond) - Nominal size
• Brick - Standard (Stack bond - Stretcher)
• Brick - Standard (Stack bond - Stretcher) - Nominal size
• Brick - Standard (Stack bond - Header)
• Brick - Standard (Stack bond - Header) - Nominal size
• Brick - 215x102.5x73
• Brick - 215x102.5x73 - Nominal size
• Brick - 215x102.5x50
• Brick - 215x102.5x50 - Nominal size
• Brick - 228x108x68
• Brick - 228x108x68 - Nominal size
• Brick - 230x110x76
• Brick - 230x110x76 - Nominal size
• Brick - 240x115x71
• Brick - 240x115x71 - Nominal size
• Brick - 250x120x65
• Brick - 250x120x65 - Nominal size
• Brick - 190x90x65
• Brick - 190x90x65 - Nominal size
• Brick - 210x100x50
• Brick - 210x100x50 - Nominal size
• Brick - Roman 400x100x40
• Brick - Roman 400x100x40 - Nominal size
• Brick - Roman 510x100x40
• Brick - Roman 510x100x40 - Nominal size
• Block - Concrete 440x100x215
• Block - Concrete 440x100x215 - Nominal size
• Block - Concrete 390x190x190
• Block - Concrete 390x190x190 - Nominal size
• Block - Clay 500x100x224
